Product Features

CONSTANT FORCE ADAPTATION

LEVEL OF DERUSTING

ULTRA-HIGH PRESSURE WATER OPERATION

WASTEWATER RECLAIMING

LOCAL DERUSTING

CURVED SURFACE ADAPTATION

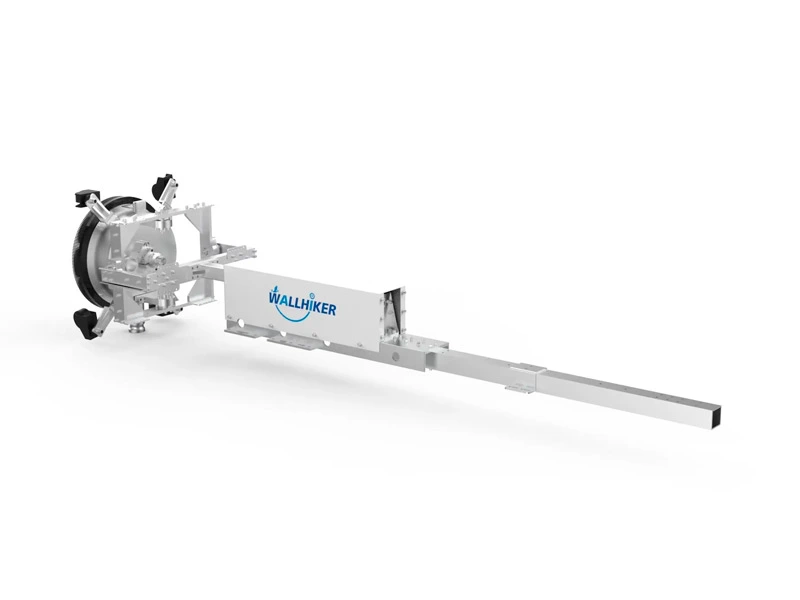

H-01 is an entry-level semi-automatic hull derusting equipment, and is cost-effective when you decide to go with a UHP water jet solution.
1. As a result of adopting a large-stroke constant force telescopic mechanism, the equipment is safe and reliable.
2. Good at working on the vertical part of the side shell plate and accurately perform local derusting operations.
3. The width of jetting can be configured flexibly, supporting different cleaning scenarios.
4. Cooperate with Vacuum Wastewater Reclaimer to achieve reasonable environmental protection.
Main Parameters | |
Telescopic stroke | 340mm |
Diameter of derusting | 300mm |
Effi ciency of derusting | 30~40㎡/h |
Size | 2950x450x450mm |
Weight | 90kg |
Level of derusting | Sa2.5 |
