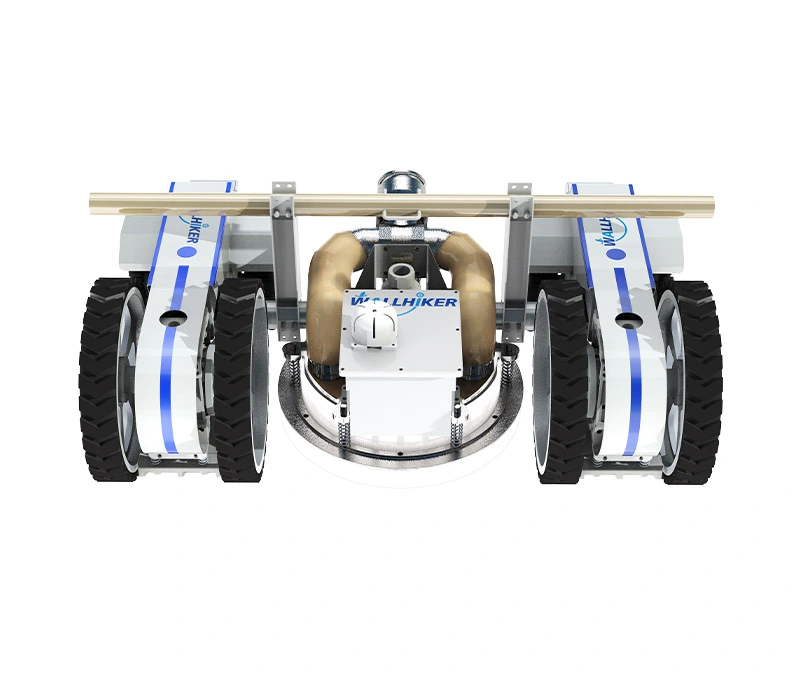

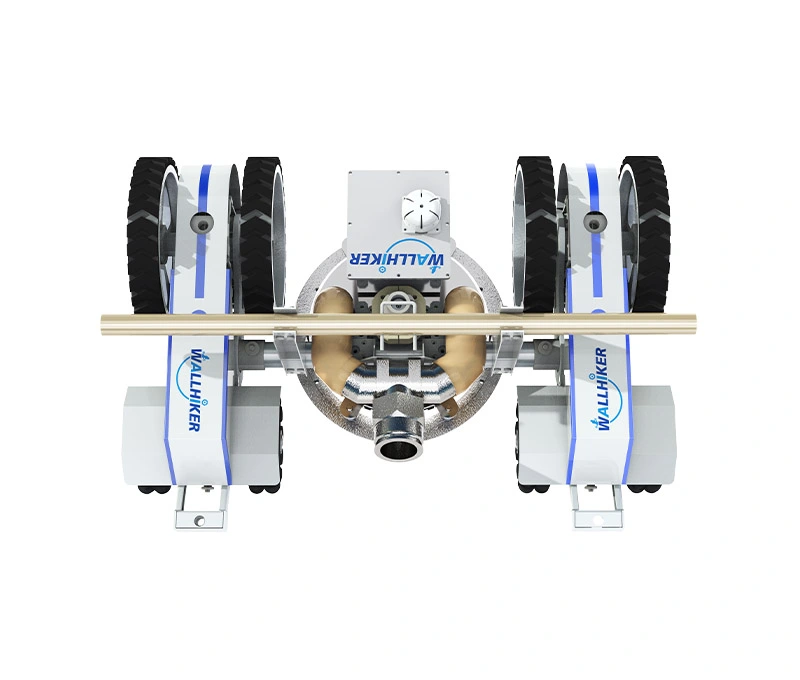

The W-2025 wheeled wall-climbing robot is equipped with a multi-degree-of-freedom body platform and an innovative magnetic adhesion module. These enhancements significantly improve curved surfaces adaptivity, safety and stability.
1. The robot is capable of adapting to over 98% of ship hull surfaces and a minimum curvature radius of 0.5 meters. It can seamlessly handle complex curves and meet the requirements of various challenging operation scenarios.
2. With Outstanding Obstacle-Surmounting capabilities, the robot can efortlessly surmount 25mm weld seams, dents, and other obstacles. This greatly enhances operational efficiency and stability.
3. Enhanced magnet adhesion modules significantly increase load capacity, effectively eliminating the risk of falling. This ensures the robot's safety and continuous operation in complex environments.
4. Utilized special materials in the rubber wheels greatly improves their performance and extends their service life, ensuring reliable operation during long, continuous work cycles.
| Main Parameters | |
Operating pressure/Max pressure | 3000bar |
Max moving speed | 1 0 m / min |
Diameter of derusting | 2 5 0 / 3 0 0mm |
Efficiency of derusting | 3 0 ~ 5 0 ㎡ / h |
Size | 9 4 0 x 6 5 5 x 3 6 5 mm |
Weight | 83kg |
| Load | 150kg |
Level of derusting | Wa2.5 |

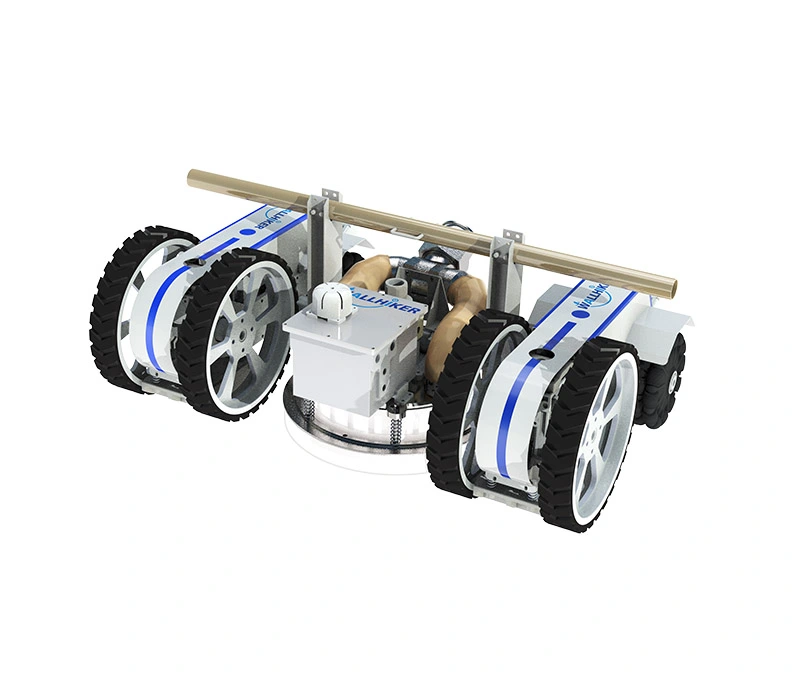

The UHP Water Blasting Magnetic Climbing Robot utilizes permanent magnetic adhesion to securely climb and attach to vertical or overhead ferromagnetic surfaces. It features a multi-degree-of-freedom platform and an innovative magnetic suction module, greatly enhancing curved surface adaptability, safety, and stability.
Powered by ultra-high-pressure water, the robot effectively cleans surfaces by blasting away contaminants like rust and paint.
Controlled remotely, it is equipped with sensors for navigation and position adjustments.
Additionally, a vacuum system recovers waste water and residue, allowing for filtration and reuse, making the process more sustainable.
1. Shipbuilding and Marine Industry
2. Oil and Gas Industry
