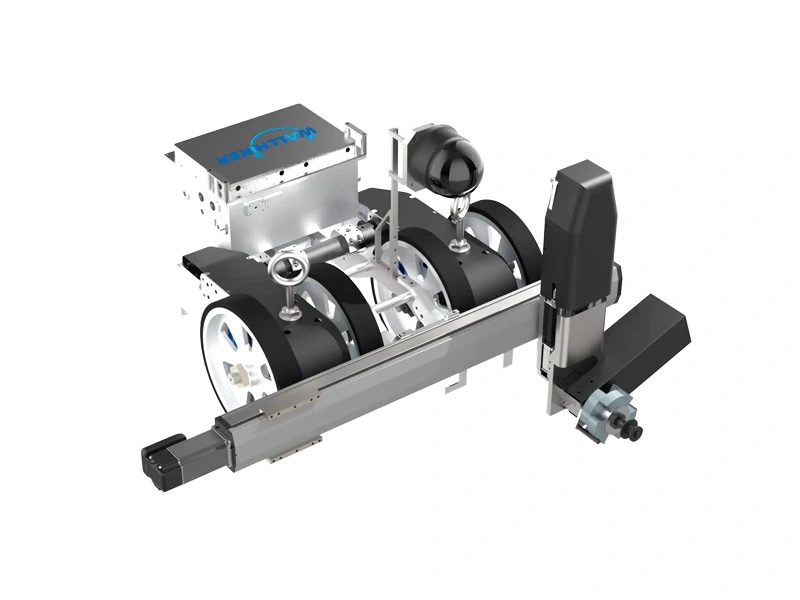

Wallhiker WP-02 Robot for Polishing and Painting for Wind Power

Name: Wallhiker WP-02 Robot for Polishing and Painting for Wind Power
Brand: SHENZHEN AKA ROBOTICS TECHNOLOGY Co., LTD.

Product Features

PERMANENT MAGNETIC ADHESION

MECHANICAL SANDING

PAINTING

WIND-RESISTANT DESIGN

AUTOMATIC LANE CHANGE

MODULAR DESIGN

VISUALIZED OPERATION

CURVED SURFACE ADAPTATION

NO SHUTDOWN

Send Inquiry Request for catalogue

WP-02 Robot for Polishing and Painting for Wind Power Application

WP-02 is applied to derusting, sanding and painting on wind turbine towers.

1. With a high level of wind resistance, it can work under the wind speed of Grade 6 (13m/s).

2. It can operate without shutdown of the wind turbine, increasing the power generation effi ciency and reducing the maintenance cost of the wind farm.

3. Easy preparation, simplifi ed operation, and friendly human-machine interaction.

4. Enable digitization and data visualization by connecting the control centre of the wind farm.

Specifications of Wallhiker WP-02 Robot for Polishing and Painting for Wind Power

Main Parameters
Max moving speed	16m/min
Height of operation	150m+
Level of working environment	<15m/s
Load	60kg
Weight	105kg
Size	1070x1070x530mm
Efficiency of painting	80~100㎡/h
Efficiency of sanding	2~6㎡/h
